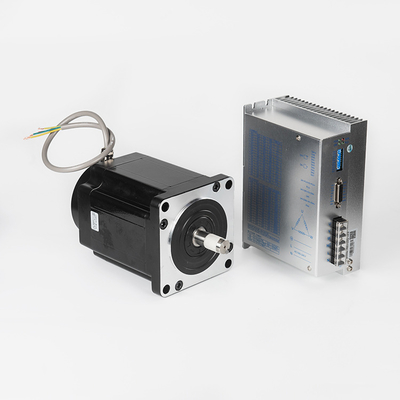

Aperçu /Produits/Moteur pas à pas industriel/Automatic Current Product Motor Length 36N.m 250mm Motor Length 36N.m 5A 3 Phase Stepping Motor NEMA 51 51 1.2 Degree High Power Stepper Motor

Automatic Current Product Motor Length 36N.m 250mm Motor Length 36N.m 5A 3 Phase Stepping Motor NEMA 51 51 1.2 Degree High Power Stepper Motor

1 set
MOQ
Automatic Current Product Motor Length 36N.m 250mm Motor Length 36N.m 5A 3 Phase Stepping Motor NEMA 51 51 1.2 Degree High Power Stepper Motor
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 3months-1year, 3months-1year
Model Number: 130BYG350-250
Phase: 3
Type: Hybrid
Current / Phase: 5a
Product name: stepping motor big nema 51
Holding Torque: 36N.m
Step Angle: 1.2degree
Current: 5A
Resistance: 2.75
Rotor Inertia: 43000g.cm2
Inductance: 32mH
Shaft diameter: 19mm
Application: Automatic Product
Informations de base
Model Number: 130BYG350-250
Conditions de paiement et expédition
Packaging Details: standard export cartons for 250mm motor length 36N.m 5A current 3 phase 220v stepping motor big nema 51 1.2 degree high power stepper motor
Supply Ability: 100000 Piece/Pieces per Month
Description de produit
Product Description
GENERAL SPECIFICATIONS
Item
Specifications
Step Angle Accuracy
±5%
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80℃ Max
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100MOMin 500VDC
Dielectric Strength
500V AC 1minute
Allowable Radial Load
0.02mm Max. (450g load)
Allowable Thrust Load
0.08mm Max. (450g load)
Dimension
Connections&Frequency-Torque Characteristice
Specifications
Mode
Stepangle
(°)
Length
(mm)
Voltage V
Current A/phase
Resistance
Ω/phase
lnductance mH/phase
Hold torque
N.m
Rotor inertia
g.cm2
weight kg
130BYG350-187






1.2
187
9.5
5
2.3
19
20
24000
14.5
130BYG350-230
230
13.8
5
1.67
28
30
28900
16.8
130BYG350-250
250
13.2
5
1.69
26
36
34000
18.2
30BYG350-290
290
13.3
5
2.75
32
50
43000
22
Motor Applications
Textile Machinery
Medical Equipment
CNC Machinery
3D Printer
Automation Equipment
OEM
Company Profile
Changzhou Emtech Intelligent Co.,Ltd specialized in manufacturing various types of stepper motor,servo motor and motor driver. With 20 years experience in this field, our product already get certificate of CE and RoHS.We have five production line and with production capacity more than 1 million motors per year.
Our Company offers many major series of products: Hybrid Stepper motors, Closed Loop Stepper Motor,Linear Stepper Motor, Brushless DC motor, DC Brush motor, Motor Driver, Geared Motor,Brake Motor, Servo Motor with different power and so on...
Innovation makes our product competitive. Our R&D team with many years of experience in application engineering, design engineering in different field equipment.This support us to provide product to meet different field,such as industry of automation,medical and health care equipment, 3D printer machines, packing devices, information technology, household appliance products.
Adhering to the concept of Quality first,Customer foremost. We are looking forward to cooperate with customers from all walks oflife.
Why Choose Us
Q:Are you factory?
A:Yes, we are facotry, and we produce stepper motor for more then 20 years in China.

Q: How to select the motor model?
A: Before purchasing,please contact us to confirm the model no and specification to avoid any misunderstanding.

Q: What’s your warranty?
A:Our warranty is 12 months from shipment out of factory.

Q:What is your payment way?
A: Sample fee should be fully paid before production,for bulk order,50% advance is needed and balance after copy of B/L..

Q:How can we know the product quality?
A: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough
information in the product page.
