item | value |
Warranty | 3months-1year |
Place of Origin | China |
Brand Name | MPS |
Model Number | MPS86HSE12N-BC38 |
Phase | 2 |
Type | Hybrid |
Current / Phase | 6A |
Model | MPS86HSE12N-BC38 |
Resistance | 0.45ohms |
Inductance | 5.2mH |
Motor length | 156mm |
Encoder Resolution | 1000ppr |
Weight | 5.65kg |

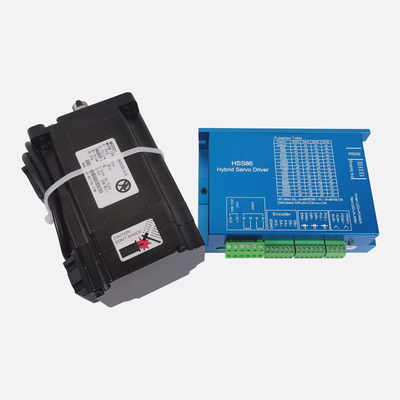

Stepper driver | HSS86 |
Voltage of the driver | AC20~80V//DC30~110V |
Model | Step angle | Current (A) | Resistance (ohms+-10%) | Inductance (mH+-20%) | Holding torque (N.M) | Motor Length(mm) | Encoder Resolution(ppr) |
86HSE4N-BC38 | 1.8 | 6.0 | 0.45 | 3.7 | 4.5 | 82 | 1000 |
86HSE8N-BC38 | 1.8 | 6.0 | 0.44 | 3.7 | 8.0 | 118 | 1000 |
86HSE12N-BC38 | 1.8 | 6.0 | 0.45 | 5.2 | 12.0 | 156 | 1000 |
