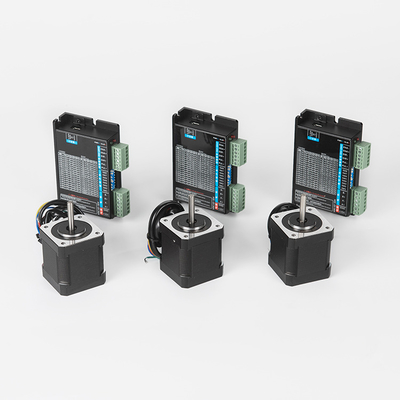

nema 17 stepper motor 2 wire stepper motor 4 phase 1.8 degree step angle stepper motor hybrid nema 17 stepper motor

1 piece
MOQ
nema 17 stepper motor 2 wire stepper motor 4 phase 1.8 degree step angle stepper motor hybrid nema 17 stepper motor
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 3months-1year
Model Number: nema 17 stepper motor
Phase: 2
Type: Hybrid, Hybrid
Current / Phase: 1.2A
Product name: nema 17 stepper motor
Length: 40
Voltage: 2
Current: 1.2
Resistance: 1.67
Inductance: 3.7
Holding Torque: 0.3
Rotor Inertia: 54
Weight: 0.3
Informations de base
Model Number: nema 17 stepper motor
Conditions de paiement et expédition
Packaging Details: standard export cartons for nema 17 stepper motor
Supply Ability: 100000 Piece/Pieces per Month
Description de produit
Product Description
GENERAL SPECIFICATIONS
Item
Specifications
Step Angle Accuracy
±5%
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80℃ Max
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100MOMin 500VDC
Dielectric Strength
500V AC 1minute
Allowable Radial Load
0.02mm Max. (450g load
Allowable Thrust Load
0.08mm Max. (450g load)
Dimension
Connections&Frequency-Torque Characteristice
Specifications


Model

Stepangle ()

Length (mm)

Voltage V

Current A/phase

Resistance Ω/phase

Inductance mH/phase

Hold torque Nm

Rotor inertia g.cm²

weight kg
42BYG250-34




1.8
34
2.76
1.2
2.3
2.5
0.21
35
0.22
42BYG250-40

40
2
1.2
1.67
3.7
0.3
54
0.3
42BYG250-47

47
2.02
1.2
1.69
2.6
0.4
68
0.38
42BYG250-60

60
3.3
1.2
2.75
6.4
0.6
102
0.5
Motor Applications
Textile Machinery
Medical Equipment
CNC Machinery
3D Printer
Automation Equipment
OEM
Company Profile
Changzhou Emtech Intelligent Co.,Ltd specialized in manufacturing various types of stepper motor,servo motor and motor driver. With 20 years experience in this field, our product already get certificate of CE and RoHS.We have five production line and with production capacity more than 1 million motors per year.
Our Company offers many major series of products: Hybrid Stepper motors, Closed Loop Stepper Motor,Linear Stepper Motor, Brushless DC motor, DC Brush motor, Motor Driver, Geared Motor,Brake Motor, Servo Motor with different power and so on...
Innovation makes our product competitive. Our R&D team with many years of experience in application engineering, design engineering in different field equipment.This support us to provide product to meet different field,such as industry of automation,medical and health care equipment, 3D printer machines, packing devices, information technology, household appliance products.
Adhering to the concept of Quality first,Customer foremost. We are looking forward to cooperate with customers from all walks oflife.
Why Choose Us
Q:Are you factory?
A:Yes, we are facotry, and we produce stepper motor for more then 20 years in China.

Q: How to select the motor model?
A: Before purchasing,please contact us to confirm the model no and specification to avoid any misunderstanding.

Q: What’s your warranty?
A:Our warranty is 12 months from shipment out of factory.

Q:What is your payment way?
A: Sample fee should be fully paid before production,for bulk order,50% advance is needed and balance after copy of B/L..

Q:How can we know the product quality?
A: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough
information in the product page.
