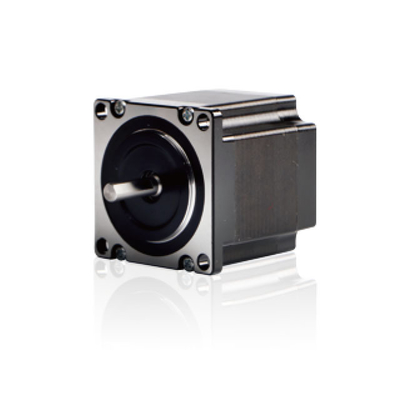

Hot Sales CE ROHS 3A 1N.m 2 Phase 57mm Single Axis DC Hybrid Step Motor and Driver Driver Kit for Laser Machine XZ57QB10

1 set
MOQ
Hot Sales CE ROHS 3A 1N.m 2 Phase 57mm Single Axis DC Hybrid Step Motor and Driver Driver Kit for Laser Machine XZ57QB10
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 3months-1year
Model Number: XZ57QB10
Phase: 2
Type: Hybrid
Current / Phase: 3A
Package: Paper Box
Certification: RoHS CE ISO9001
Product Name: DC stepper step motor
Model: XZ57QB07
Ambient Temperature(°C): -20℃~ +50℃
Shaft: Single Shaft
Motor Length(mm): 55
Shaft diameter(mm): 8
Phase Resistance(Ω): 0.86
Weight(kg): 1.9
Informations de base
Certification: RoHS CE ISO9001
Model Number: XZ57QB10, XZ57QB07
Conditions de paiement et expédition
Packaging Details: Paper Box
Description de produit
Product Description
Stepper motor is an open-loop control motor that converts electrical pulse signal into angular displacement or linear displacement. It is the main actuator in modern digital program control systems, which is normally used for CNC, dispenser, laser cutting machine, engraving machine, marking machine, medical equipment, and automatic assembly equipment, etc.
XZ57QB10
Certification standards:
Number of phase: 2 Step Angle accuracy: Plus or minus 5% The IP rating: 40 Certification: RoHS CE ISO9001 Insulation class: B (130 ℃) Operating ambient temperature: - 20 ℃ ~ + 50 ℃
Electrical parameters:
Motor type
Holding torque (N.m)
Body length(mm)
Axle diameter (mm)
Rated current (A)
Resistance (Ω)
Rated inductance (mH))
Rated voltage (V)
Rotor inertia (g cm2)




57
0.7N.m
45
8mm
3A
0.71Ω
1.9mH
2.1V
150g cm2
1N.m
 55
8mm
3A
0.86Ω
2.6mH
2.6V
300g cm2
1.5N.m
65
8mm
4A
0.76Ω
3.2mH
3V
400g cm2
1.8N.m
75
8mm
4A
0.9Ω
4.5mH
3.6V
480g cm2
2N.m
80
8mm
4A
0.97Ω
5.8mH
3.9V
500g cm2
2.2N.m
84
8mm
4A
1.02Ω
7mH
4.1V
530g cm2
2.5N.m
100
8mm
5A
0.75Ω
3.2mH
3.8V
700g cm2
3N.m
112
8mm
5A
0.81Ω
4.6mH
4.1V
800g cm2


Motor outline drawing:
Motor wiring：
1. When installing the motor, be sure to use the front end cover of the motor to install the stop position, and pay attention to
the cooperation, strictly ensure the concentricity of the motor shaft and the load. 2. When the motor is connected to the driver,
do not connect the wrong phase.

100% pure copper coil

- 3-layer high density molecular paint drip coating.
- Isolation of dust,life is 10 times that of ordinary coating

Silicon steel rotor

- World-class silocon steel
- Large torque
- Stable output
- Low noise
- Long life

International standard design

- Novel design and compact structure
- Easy installation and stable operation
- Large reduction ratio

Low motor noise

- Imported bearings, increase running frictional resistance
- Long-term carrying without deformation and noise
Usage scenario

Company Introduction

Shenzhen Xuanze Technology Co., LTD., founded in 2018 and headquartered in Shenzhen, is a technology-oriented enterprise focusing on intelligent system design and development and engineering implementation. The company is rich in human resources, strong technical strength, with a scientific research and management team composed of a number of industry senior engineers and a group of young and energetic technical personnel. The company also carries out industry-university-research cooperation with a number of universities and scientific research institutions, integrating cutting-edge technology exploration, applied technology development, product engineering realization, mass production, marketing and after-sales service. Industrial automation department for plastic, packaging, printing, electronic electrician, and other industries to provide" motion control + visual + industrial control system integration, system mainly completed three dimensional manipulator system, magnetic levitation carrying manipulator system, electric control system (integrated tinted) printing machines, visual contour detection, 3 c electronic assembly joint visual location, etc.;
Customer Reviews
Our Warehouse
Packaging and transportation
1.What is your main line of business?
We sell and repair Fanuc Products in China, in addition, we also provide other CNC spare parts.
2.Where is your company？How do I get there?
Our Headquarter is located in Shenzhen City, Guangdong Province, the environment is elegant, the equipment profession.

3.Do you have the test equipment? How long is the delivery time?
We have complete testingequipment and all parts are tested 100% before they leave the factory. Most of the parts are in stock, so the delivery time is usually 1-2 days.

4.What's the warranty on your parts?
The warranty period for the used parts is 3 months and for the new parts is1 year. If you receive the part but it does not work properly, you can return it to us within 7 days.

5. How about the packing when they are sent out?
We usually use foam paper to fill all the areas inside the box to protect the parts. We often pack the parts in cardboard boxes, but if the parts are too heavy, we make wooden boxes for them. 6.What deliveries are available? UPS, DHL, FEDEX, TNT and EMS are available.
