Aperçu /Produits/boîte de vitesse de moteur pas à pas/Precision 42mm Planetary Gear Layout NEMA 17 Planetary Gear Layout Square Planetary Gearbox High Torque Speed ​​Reducer For Stepper Motor

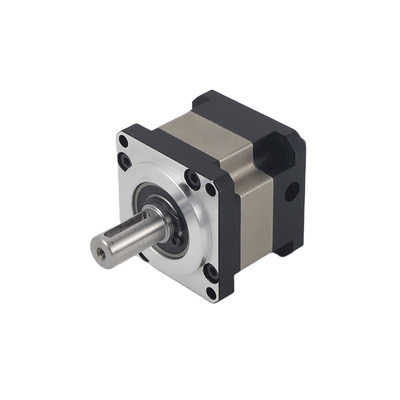

Precision 42mm Planetary Gear Layout NEMA 17 Planetary Gear Layout Square Planetary Gearbox High Torque Speed ​​Reducer For Stepper Motor

1 set
MOQ
Precision 42mm Planetary Gear Layout NEMA 17 Planetary Gear Layout Square Planetary Gearbox High Torque Speed ​​Reducer For Stepper Motor
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 1year, 1 year
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company, Automation, Printing machine
Weight (KG): 0.5 KG
Customized support: OEM, ODM
Gearing Arrangement: Planetary
Output Torque: 9 -12 N.m
Input Speed: ≤ 3000rpm
Output Speed: 0.5rpm-50rpm
Gears Style: Planetary Gear Arrangement
Size: 42mm Square Flange
Material of gear: High Precision Grinding
Mounting Position: Stepper motor and Servo Motor
Keyword: Low Backlash & Efficiency
Ratio: 4,5,7,10,16,20,25,28,35,40,50,70
Material of housing: 20CrMn
Backlash: 10-15 Arcmin
Input speed: 3000rpm
Informations de base
Conditions de paiement et expédition
Packaging Details: standard export package
Supply Ability: 500000 Set/Sets per Year
Description de produit
Product Description

The reducer is generally used for low-speed and high-torque transmission equipment. The motor, internal combustion engine or other high-speed running power is used to achieve the purpose of deceleration by meshing with the large gear on the output shaft through a gear with a small number of teeth on the input shaft of the reducer. The reducer will also have several pairs of gears with the same principle to achieve the ideal reduction effect. The ratio of the number of teeth of the large and small gears is the transmission ratio.
Products Parameters
SPECIFICATIONS
STAGE
RATIO
RATED TORQUE(N.m)








PLF42-42mm  Planetry Gearbox



L1
4
9
5
9
7
5
10
5







L2
16
12
20
12
25
10
28
10
35
10
40
10
50
10
70
10
Adapted motor
∅ 5-10/ ∅22-2/F31-M3
Rated Input Speed (rpm)
3000/min
Max Input Speed (rpm)
6000/min
Backlash
L1
≤15 Arcmin
L2
≤20 Arcmin
Fault stop torque(N.m)
2 times of rated torque
Efficiency
L1
96%
L2
94%
Average life span
20000/h
Operating temperature
-10°～+90°
Nosie
≤55db
Weight (kg)
L1
0.25
L2
0.35
IP
54
Installation method
Any installation method
Production Range
42 Series Planetary Gearbox
Backlash: 10-15 arcmin
Ratio Selection:
L1: 4,5,7,10,
L2: 12,16,20,25,28,35,40,50,70
Frame Dimension: 42mm Input Flange
Gear Arrangement: Planetary Straight Teeth
60 Series Planetary Gearbox
Backlash: 10-15 arcmin
Ratio Selection:
L1: 4,5,7,10,
L2: 16,20,25,28,35,40,50,70
Frame Dimension: 60mm Input Flange
Gear Arrangement: Planetary Straight Teeth
90 Series Planetary Gearbox
Backlash: 10-15 arcmin
Ratio Selection:
L1: 4,5,7,10,
L2: 16,20,25,28,35,40,50,70
Frame Dimension: 90mm Input Flange
Gear Arrangement: Planetary Straight Teeth
Right Angle Series Planetary Gearbox
Backlash: 10-15 arcmin
Ratio Selection:
L1: 4,5,7,10, L2: 16,20,25,28,35,40,50,70
Frame Dimension: 60mm & 90mm
Gear Arrangement: Planetary Straight Teeth
Powder Metal Series Planetary Gearbox
Backlash: 10-15 arcmin
Ratio Selection:
L1: 4,5,7,10,
L2: 16,20,25,28,35,40,50,70
Frame Dimension: 42mm & 57mm
Gear Arrangement: Planetary Straight Teeth
Solar Gear Motor
Output Torque: 60 - 660 N.mIP: 65
Customized Service: OEM, ODM.
Application: Solar Tracker System / Solar Panels Cleaning Robot / Other Industry Machine
NEMA Series Stepper Motor
Motor Type: NEMA 8 -- NEMA 42Step Accuracy: 5%
Adapted Gearbox Diameter(mm): 20, 28,35,39,42,57,60,86,110
Ambient Temperature Range:
-20°C ~ +50°C
Application Field
Automatic Arms

Assembly Line

3D-Printer

Medical -Equipment

CNC Machine

Tapping Machine

Other Automation Devices
Why Choose Us

Anhui High Precision Gear

Transmission Co., Ltd
COMPANY PROFILE

Anhui High Precision Gear Transmission Co., Ltd located in Chuzhou city, Anhui Province, China. It is a leading company dedicated in precision transmission parts and system research, manufacture and sales, various series of products are manufactured in its 5000 square meters workshop, the precision planetary gearbox and gear motor are developed especially for solar energy industry and have served many large-scale solar projects worldwidely.
The research team has more than 15 years experiences in this field, who can ensure a punctual and efficient service to meet customer's specific needs. It has pasted the ISO9001 quality management system and CE, products have been exported to lots of countries with a wide range application in AGV, intelligent robot, logistic, industrial automation, solar energy, vessel, packaging and textile etc.Consistently, our goal is to promote the application of solar power industry in the world, and we believe it provides clean and sustainable energy for humanity to better protect our environment.
WORKSHOP

TEAM


CERTIFICATIONS


LOGISTICS

FAQ
Q：Which areas are your products mainly used in? A：At present, we have two main products: precision planetary gear reducer and solar geared motor. Most of the precision planetary reducers are used in automation fields, such as medical equipment, 3D printers, door openers, tapping machines, CNC lathes and a series of automation equipment. In addition, our solar geared motors are used in photovoltaic power generation projects, which are mainly combined with rotary drives to drive solar panels to track sunlight.
Q : How to choose the suitable planetary gearbox? A :First of all, we need you to be able to provide relevant parameters. If you have a motor drawing, it will let us recommend a suitable gearbox for you faster. If not, we hope you can provide the following motor parameters: output speed, output torque, voltage, current, IP, noise, operating conditions, motor size and power, etc. Q : What is the price ? A : The main determining factor for the price of each product is the order volume. You can communicate with us and let us understand each other. I believe that our prices, product quality and our services can definitely make you satisfied. Q : Do you provide customized service? A: Yes, we provide customized services. You only need to put forward your needs, and we will do our best to provide you with a plan, make plans, and try our best to meet your needs.
