Aperçu /Produits/Moteur pas à pas hybride/ZLTECH Hybrid 2 Phase 1.8 Stepper Motor High Torque 2.8N.m 57mm Nema23 5A DC Brushless Stepper Motor For 3d Printer ZL57HS28

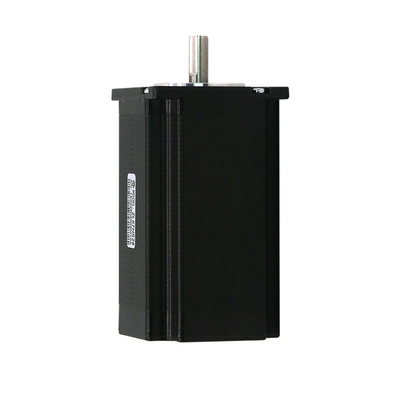

ZLTECH Hybrid 2 Phase 1.8 Stepper Motor High Torque 2.8N.m 57mm Nema23 5A DC Brushless Stepper Motor For 3d Printer ZL57HS28

1 Piece
MOQ
$24.80(1 - 49 Pieces) $19.50(50 - 499 Pieces) $17.80(>=500 Pieces)
Prix
ZLTECH Hybrid 2 Phase 1.8 Stepper Motor High Torque 2.8N.m 57mm Nema23 5A DC Brushless Stepper Motor For 3d Printer ZL57HS28
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 3months-1year
Model Number: ZL57HS28
Phase: 2
Type: Hybrid
Current / Phase: 5A
Motor model: ZL57HS28
Shaft: Single shaft
Shaft diameter: 8mm
Shaft length: 21mm
Motor length: 101mm
Resistance/Phase: 0.6Ω
Inductance/Phase: 2mH
Rotor inertia: 680g.cm2
Motor weight: 1500g
shaft extension: platform(0.5mm*15mm)
Certification: ce, ISO, RoHS
Informations de base
Certification: ce, ISO, RoHS
Model Number: ZL57HS28, ZL57HS28
Conditions de paiement et expédition
Packaging Details: motor weight: 1500g motor length:121mm quantity per carton depends on the motor size
Description de produit
Product Description
Stepper motor is an open-loop control motor that converts electrical pulse signal into angular displacement or linear displacement. It is the main actuator in modern digital program control systems, which is normally used for CNC, dispenser, laser cutting machine, engraving machine, marking machine, medical equipment, and automatic assembly equipment, etc.
Stepper Motor
ZL57HS28
Shaft
Single Shaft
Size
Nema23
step angle
1.8°
shaft diameter
8mm
shaft length
21mm
Holding Torque
2.8N.m
Rated Current
5A
Phase Resistance
0.6Ω
Phase Inductance
2mH
Lead Wire
4
Motor Length
101mm


Feature
* Large output torque, high speed and no step loss.

* Low heat, low noise, low vibration and high precision and long lifespan.


  • Motor wiring

1. When installing the motor, be sure to use the front end cover of the motor to install the stop position, and pay attention to the cooperation, strictly ensure the concentricity of the motor shaft and the load. 2. When the motor is connected to the driver, do not connect the wrong phase.
Detailed Images
Size Information
Related Products
Company Introduction
Shenzhen Zhongling Technology Co., Ltd is a high-tech company integrated R&D, production and sales, has been focusing on industrial automation product since its establishment. Our product including digital stepper motor, integrated open/closed loop stepper motor, standard split closed loop stepper motor, Ethernet TCP/IP stepper driver, low voltage DC servo motor, AGV robot dedicated hub servo motor, high precision DD motor indexing plate, SCARA robot arm, and so on, have been applied by thousands of customers, and provide one-stop service for AGV industry. And our product has been exported to Southeast Asia, Europe, United States and other countries.
Packing&Shipping
Motor weight:1.5kg
Motor total length: 122mm
Package: carton with foam, quantity per carton will depend on the motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by boat according to your requirements.
FAQ
1. Factory or trader?
-->ZLTECH is a manufacture of hub servo motor, stepper motor, servo motor and driver. We have professional R&D team and factory.
2. How about the delivery?
--> Sample: 7 days.
--> Mass order: 15-30 days.
3. What is your after-sales services?
a. Free maintenance within 12 months guarantee, lifetime consultant.
b. Professional solutions in installation and maintence.
4. Why choose ZLTECH?
-->a. OEM & ODM.
b. Factory Price & 24/7 services.
c. From mold customization to material processing and welding, from fine components to finished assembly, 72 processes, 24 control points, strict aging, finished product inspection.
d. One-stop service, from design to after-sale service.
5. Do you get the relevant certification?
-->All products are made according to ISO9001, CE requirements.
