NEMA 17 0.75Nm 2A 2 Phase Wire 12V-40V 42mm Digital Brushless DC Stepper Motor And Driver Hybrid Stepper Kit For Dispensing Robot 96*61*25

1 Piece
MOQ
$26.50(1 - 49 Pieces) $23.00(>=50 Pieces)
Prix
NEMA 17 0.75Nm 2A 2 Phase Wire 12V-40V 42mm Digital Brushless DC Stepper Motor And Driver Hybrid Stepper Kit For Dispensing Robot 96*61*25
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 3months-1year
Model Number: ZL42HS07+DM4040
Phase: 2, 2 phase
Type: Hybrid
Current / Phase: 2A
step angle: 1.8°
shaft diameter(mm): 5
shaft length(mm): 24
Rated Current(A): 2
Phase Resistance(Ω): 1.75
Holding Torque(N.m): 0.75
Motor Length(mm): 60.1
Driver Voltage(V): 12-40
Driver Outline Size(mm): 96*61*25
Certification: ce, ISO, RoHS
Informations de base
Certification: ce, ISO, RoHS
Model Number: ZL42HS07+DM4040
Conditions de paiement et expédition
Packaging Details: motor weight: 0.5kg motor length: 84.1mm driver weight: 0.25kg
Description de produit
Product Description
Stepper motor and driver kit is an open-loop control system that converts electrical pulse signal into angular displacement or linear displacement. It is the main actuator in modern digital program control systems, which is normally used for CNC, dispenser, laser cutting machine, engraving machine, marking machine, medical equipment, and automatic assembly equipment, etc.

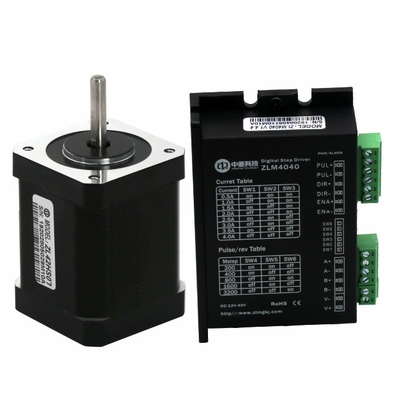

Stepper Motor and Driver kit
ZL42HS07+DM4040
Shaft
Single Shaft
Size
Nema17
step angle
1.8°
shaft diameter
5mm
shaft length
24mm
Holding Torque
0.75N.m
Rated Current
2A
Phase Resistance
1.75Ω
Phase Inductance
3.7mH
Lead Wire
4
Motor Length
60.1mm
Driver Current
0.5A-4.0A
Driver Voltage
12V-40V
Driver Outline Size
96x61x25mm


Feature
* Large output torque, high speed and no step loss.

* Low heat, low noise, low vibration and high precision and long lifespan.


  • Motor wiring

1. When installing the motor, be sure to use the front end cover of the motor to install the stop position, and pay attention to the cooperation, strictly ensure the concentricity of the motor shaft and the load. 2. When the motor is connected to the driver, do not connect the wrong phase.
Detailed Images
Size Information
Related Products
Company Introduction
Shenzhen Zhongling Technology Co., Ltd is a high-tech company integrated R&D, production and sales, has been focusing on industrial automation product since its establishment. Our product including digital stepper motor, integrated open/closed loop stepper motor, standard split closed loop stepper motor, Ethernet TCP/IP stepper driver, low voltage DC servo motor, AGV robot dedicated hub servo motor, high precision DD motor indexing plate, SCARA robot arm, and so on, have been applied by thousands of customers, and provide one-stop service for AGV industry. And our product has been exported to Southeast Asia, Europe, United States and other countries.
Packing&Shipping
Motor weight: 0.5kg
Driver weight: 0.25kg
Motor length: 84.1mm
Package: carton with foam, quantity per carton will depend on the motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by boat according to your requirements.
FAQ
1. Factory or trader?
-->ZLTECH is a manufacture of hub servo motor, stepper motor, servo motor and driver. We have professional R&D team and factory.
2. How about the delivery?
--> Sample: 7 days.
--> Mass order: 15-30 days.
3. What is your after-sales services?
a. Free maintenance within 12 months guarantee, lifetime consultant.
b. Professional solutions in installation and maintence.
4. Why choose ZLTECH?
-->a. OEM & ODM.
b. Factory Price & 24/7 services.
c. From mold customization to material processing and welding, from fine components to finished assembly, 72 processes, 24 control points, strict aging, finished product inspection.
d. One-stop service, from design to after-sale service.
5. Do you get the relevant certification?
-->All products are made according to ISO9001, CE requirements.
