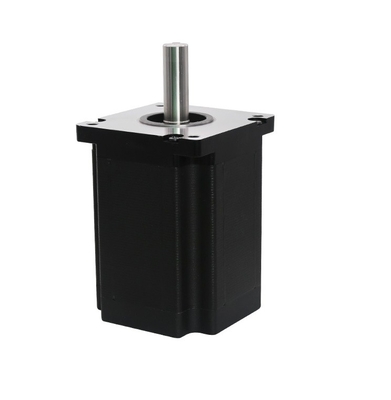

3D Printer 24N.m Dual Phase 6.5A 110mm High Torque 4 Wire NEMA 42 Stepping Motor Digital Hybrid Passo For Laser Engraving Machine

60 Pieces
MOQ
$90.00(60 - 5999 Pieces) $89.00(6000 - 59999 Pieces) $88.00(>=60000 Pieces)
Prix
3D Printer 24N.m Dual Phase 6.5A 110mm High Torque 4 Wire NEMA 42 Stepping Motor Digital Hybrid Passo For Laser Engraving Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 3months-1year
Model Number: nema 42
Phase: 2
Type: Hybrid
Current / Phase: 6.5A
Product name: Nema 42 Stepper Motor
Size: 110*110*length
Rated Current: DC 6.5A/Phase
Weight: 8.4kg
Voltage: 12V
Resistance: 0.8 Ohms
Inductance / Phase: 15 MH
Rotor Inertia: 10900 g.cm2
Insulation resistance: ≥100 MΩ (DC 500V)
Application: 3D Printer ,Medical Machine ,Robot
Certification: ce, ISO, RoHS, CCC
Informations de base
Certification: ce, ISO, RoHS, CCC
Model Number: nema 42
Conditions de paiement et expédition
Packaging Details: Carton WITH pearl cotton
Supply Ability: 1000 Carton/Cartons per Day
Description de produit
Product Name
2-phase 24N.m high torque 6.5A 110mm 4-wire digital NEMA 42 hybrid DC passo Stepping Motor for laser engraving machine
Product Description
Features: 1. Position error correction and never lose steps. 2. Quick response and perfect acceleration, high torque at high speed. 3. Automatic current adjustment based on load, lower temperature rise. 4. Over-current, over-voltage, and position ultra difference protection function. 5. Pulses response frequency can reach 200KHZ 6. 15 kinds micro-steps choice, highest 51200 microsteps/rev. 7. High dynamic performance at acceleration and deceleration, no vibration from high speed to zero speed.
Specification
Model
Rated Current
Resistance/Phase
Inductance/Phase
Holding Torque
ZT110HS
6.5 A
0.8 Ohms
15mH
24N.m

17HS2408

17HS3401

17HS4401

17HS4023
17HS8401
17HS6001
Motor Model
Step Angle
Body Length
Rated Current
Torque
Shaft Dia
17HS2408
1.8°
24mm
1.0A
0.3N.m
5mm-D Shaft
17HS3401
1.8°
34mm
1.5A
0.35N.m
5mm-D Shaft
17HS4401
1.8°
40mm
1.5A
0.45N.m
5mm-D Shaft
17HS4023
1.8°
40mm
1.7A
0.45N.m
5mm-D Shaft
17HS8401
1.8°
48mm
1.8A
0.55N.m
5mm-D Shaft
17HS6001
1.8°
60mm
2.0A
0.7N.m
5mm-D Shaft
23HS5628
23HS7628
23HS10028
Motor Model
Step Angle
Body Length
Rated Current
Torque
Shaft Dia
23HS5628
1.8°
56mm
3.0A
1.26N.m
6.35/8mm
23HS7628
1.8°
76mm
3.0A
1.8N.m
6.35/8mm
23HS10028
1.8°
100mm
4.2A
2.8N.m
6.35/8mm
Model: Nema 34 86mm
Body length : 67mm 98mm 116mm 150mm
Torque:2.40N.m 6.00N.m 8.50N.m 12.0N.m
Shaft Dia:14mm
Packing & Delivery
Carton With Pearl Cotton
Company Profile
Guangzhou Zhongtian Motor Co.,Ltd. is a professional manufacturer engaged in researching,designing,developing and producing stepper motors for more than 8 years located in Guangzhou.We accept OEM and ODM orders. Our products are widely used in medical equipment, textile machinery, packaging machinery, CNC machine tools, robots and other automation control field.We have rich experience in the development of design experts and technical stuff . We are adhering to the "integrity-based, customer first, quality first, full participation, continuous improvement, the pursuit of excellence" .We promise the excellent quality, reasonable prices, value service, look forward to your guidance and sincere cooperation.
